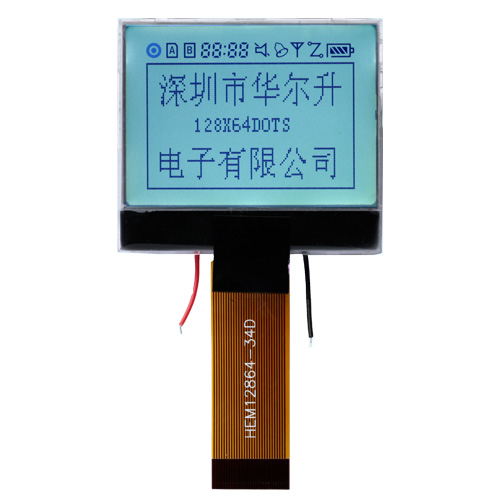

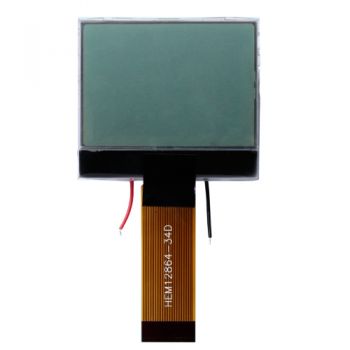

View Area: 47.0(W)*33.2(H) mm
Display mode: Positive,Transflective
Driving IC: NT7538
IC bonding: COG
DOT matrix: 128x64
Backlight: White LED
Connector: FPC
Display type: FSTN
View direction: 6 o'clock

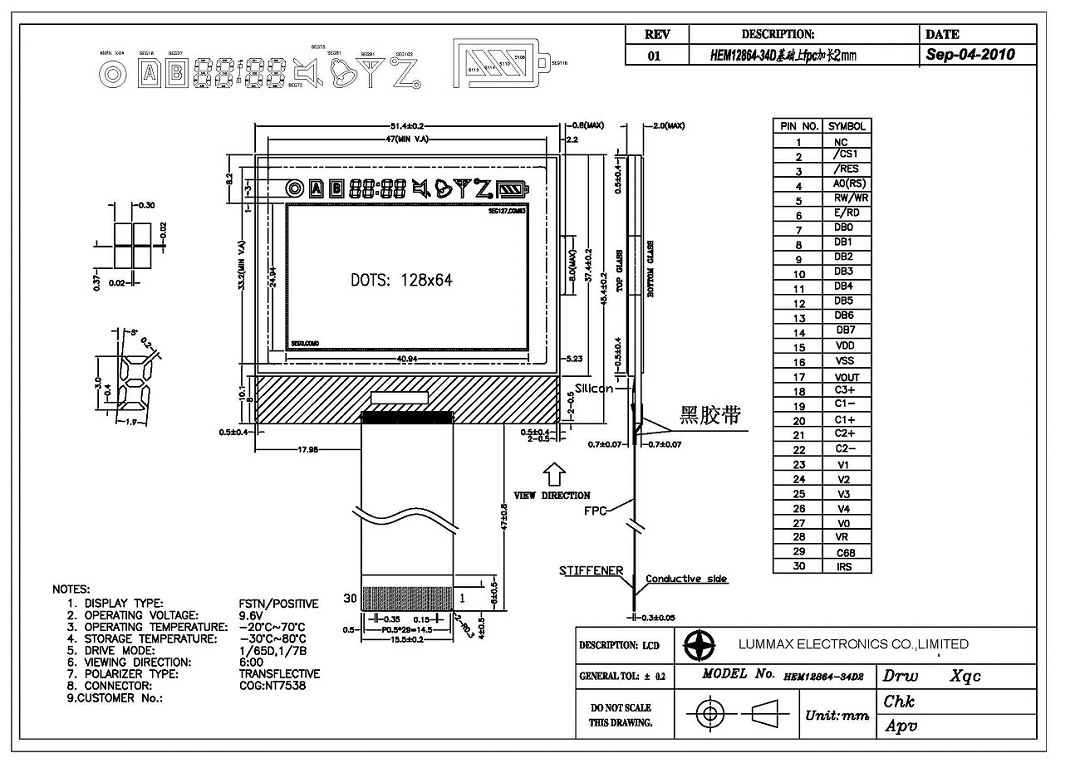

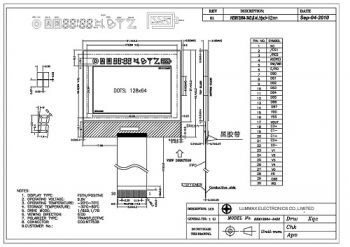

Mechanical Data:
NO
ITEM
SPECIFICATION
UNIT
1
Dot Marrix
128(W) x 64 (H)
dot
2
Module Size
51.4(W)*45.4(H)*2.0(T)
mm
3
View Area
47.0(W)*33.2(H)
mm
4
Dot Size
0.30(W) x 0.37(H)
mm
5
Module Thickness
2.00
mm
