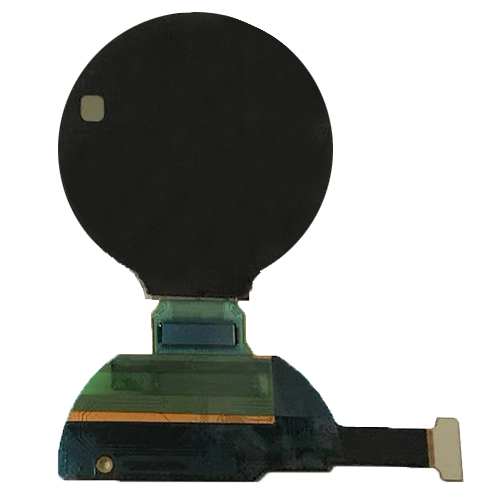

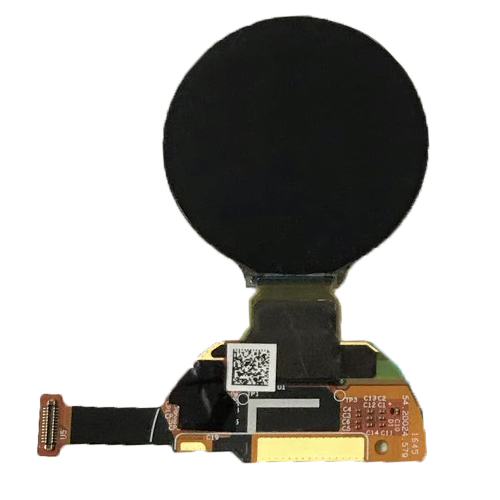

1.19 inch 390x390 Dots Color AMOLED Display

Model:AHEM0119-02
PDF Doc: Download
Add to inquiry

Product Description

Features:

Super thin AMOLED-0.68mm thickness! Best for smart wearable products!

Small molecular organic light emitting diode (OLED)
Self-luminous
Color: RGB
Panel Matrix: 390(w)*(RGB)*390(h)
Driver IC: RM67162

Interface: MIPI, SPI

Excellent quick response time: 10 μS
Extremely thin thickness for best mechaniam design: 0.68 mm
High contrast: 2000: 1
Wide viewing angel: 160°
Wide range operating temperature: -40 to 70 ºC
Anti-glare polarizer
High brightness, Sunlight Readable
low power consumption

Mechanical Datas:

NO	ITEM	SPECIFICATION	UNIT
1	Dot Matrix	390(W) x RGB x 390(H)	dot
2	Dot Pitch	78(W) x 78(H)	μm
3	Active Area	Φ30.42	mm
4	Panel Size	33.22(W) x 34.72(H)	mm
5	Panel Thickness	0.68	mm
6	Module Size	33.22(W) x 55.21(H) x 0.68(T)	mm
7	Diagonal A/A Size	1.19	inch
