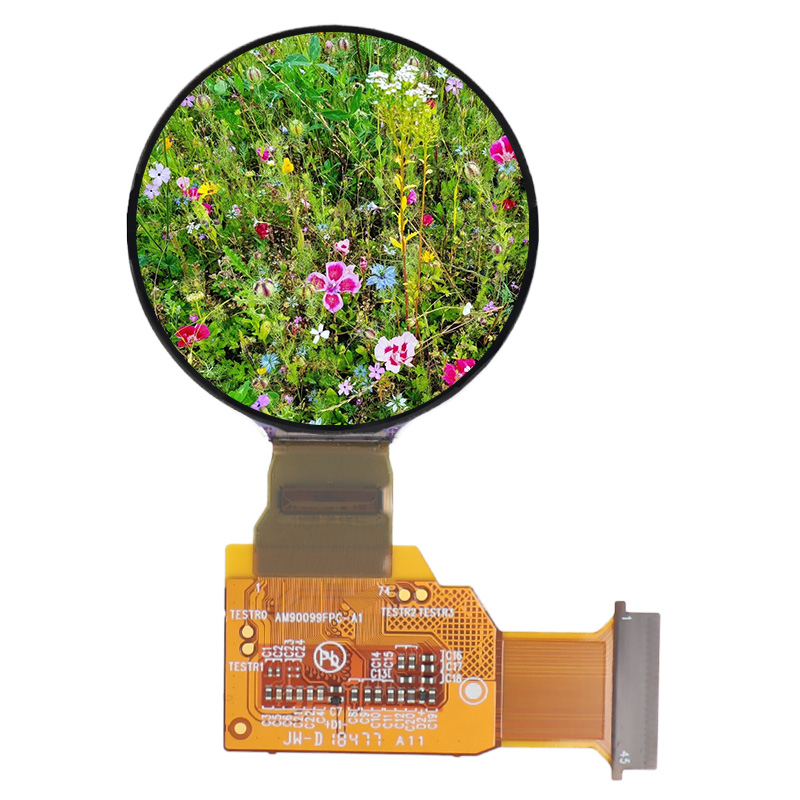

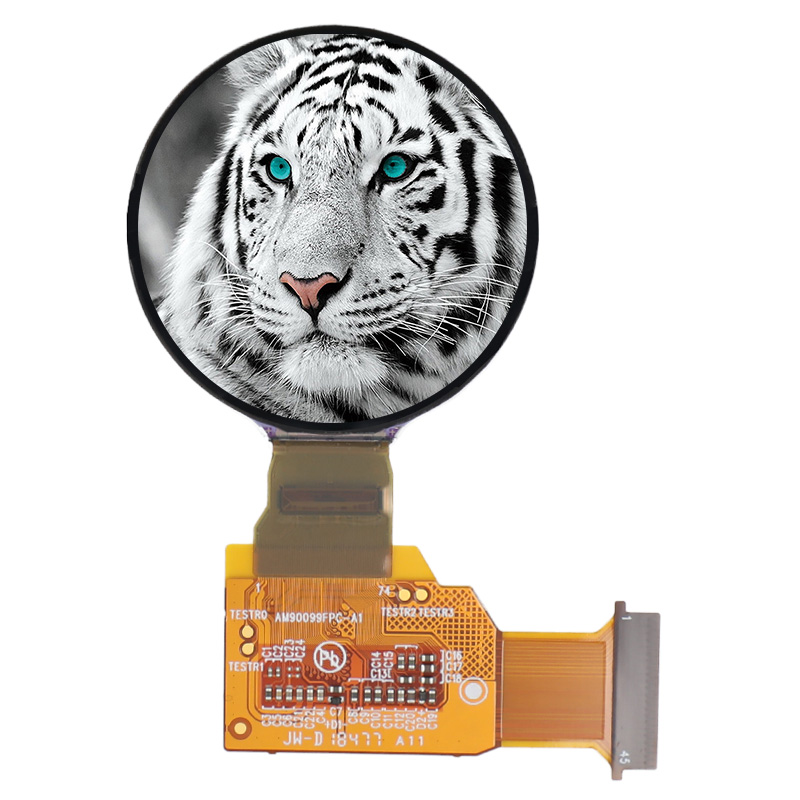

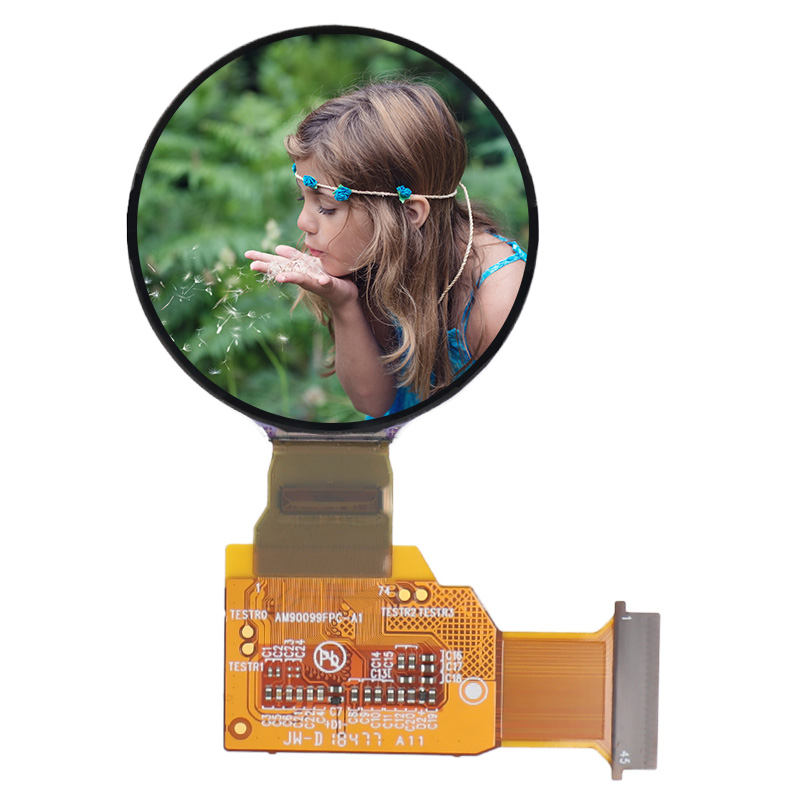

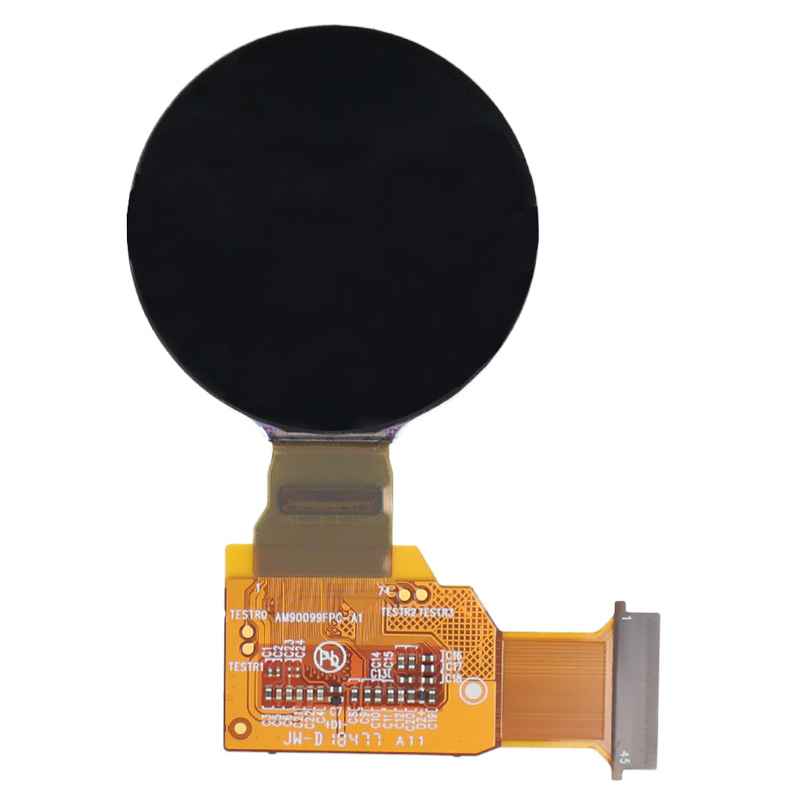

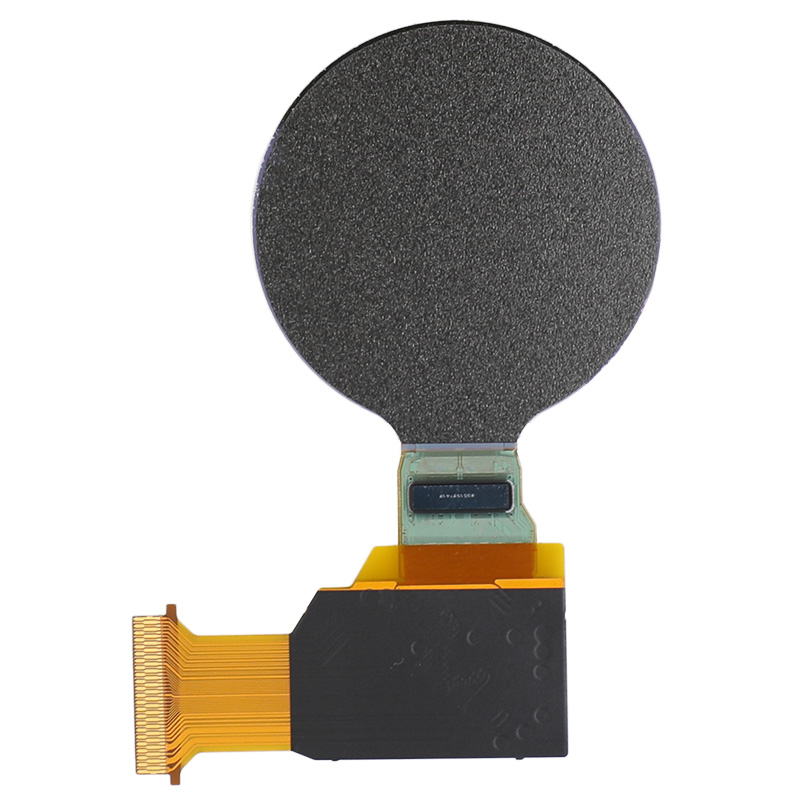

1.30 inch 360x360 Dots Color AMOLED Display
- Model:A1D3T-001
- PDF Doc: Download
- Add to inquiry
Product Description
Features:
Super thin AMOLED-0.678mm thickness! Best for smart wearable products!
Small molecular organic light emitting diode (OLED)
Self-luminous
Color: RGB
Panel Matrix: 360(w)*(RGB)*360(h)
Driver IC: RM67162F82
Interface: MIPI 1 lane/2 lane
Excellent quick response time: 10 μS
Extremely thin thickness for best mechaniam design: 0.20 mm
High contrast: 2000: 1
Wide viewing angel: 160°
Wide range operating temperature: -40 to 70 ºC
Anti-glare polarizer
High brightness, Sunlight Readable
low power consumption
Life Time: 12000 Hrs
Mechanical Datas:
|
NO |
ITEM |
SPECIFICATION |
UNIT |
|
1 |
Dot Marrix |
360(W) x RGB x 360(H) |
dot |
|
2 |
Dot Pitch |
91.50(W) x 91.50(H) |
μm |
|
3 |
Active Area |
Φ32.94 |
mm |
|
4 |
Panel Size |
35.34(W) x 36.84(H) |
mm |
|
5 |
Panel Thickness |
0.678 |
mm |
|
6 |
Module Size |
35.34(W) x 36.84(H) x 0.678(T) |
mm |
|
7 |
Diagonal A/A Size |
1.30 |
inch |
