1.39 inch 400x400 Dots Color AMOLED Display

Model:AHEM0139-01
PDF Doc: Download
Add to inquiry

Product Description

Features:

Super thin AMOLED-0.2mm thickness! Best for smart wearable products!

Small molecular organic light emitting diode (OLED)
Self-luminous
Color: RGB
Panel Matrix: 400(w)*(RGB)*400(h)
Driver IC: RM67160

Interface: MIPI

Excellent quick response time: 10 μS
Extremely thin thickness for best mechaniam design: 0.20 mm
High contrast: 2000: 1
Wide viewing angel: 160°
Wide range operating temperature: -40 to 70 ºC
Anti-glare polarizer
High brightness, Sunlight Readable
low power consumption
Life Time: 12000 Hrs

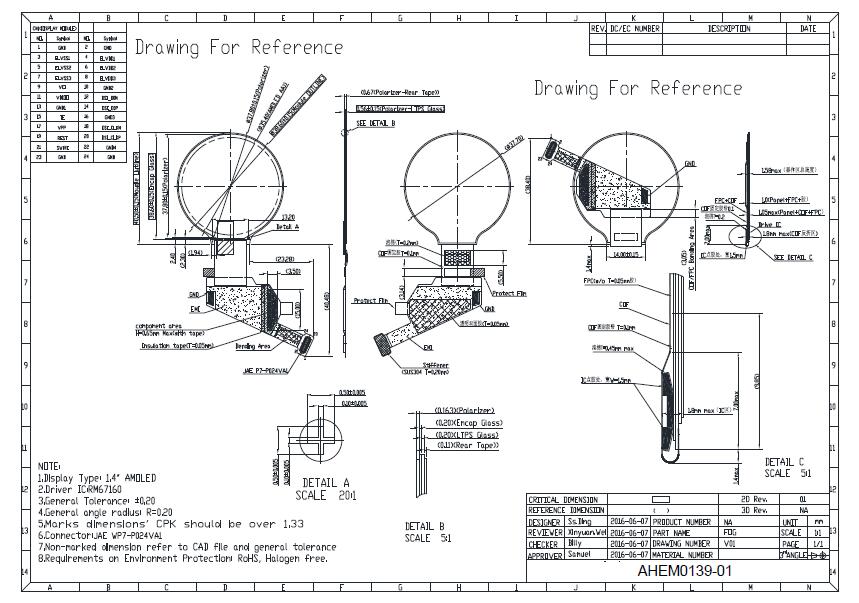

Mechanical Datas:

NO	ITEM	SPECIFICATION	UNIT
1	Dot Marrix	400(W) x RGB x 400(H)	dot
2	Dot Pitch	29.50(W) x 88.50(H)	μm
3	Active Area	Φ35.40	mm
4	Panel Size	38.60(W) x 40.50(H)	mm
5	Panel Thickness	0.2	mm
6	Module Size	38.60(W) x 40.50(H) x 0.67(T)	mm
7	Diagonal A/A Size	1.39	inch
