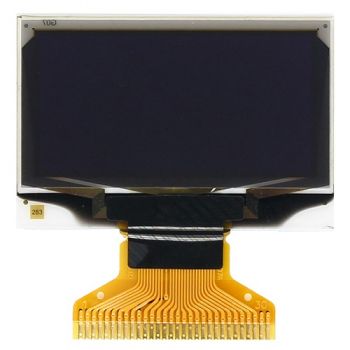

1.30 inch 128x64 Dots White OLED Display

Model:OHEM12864-05
PDF Doc: Download
Add to inquiry

Product Description

Features:

Small molecular organic light emitting diode (OLED)
Self-luminous
Color: White
Panel Matrix: 128*64
Driver IC: SH1106G

Interface: Parallel, 4-wire SPI, I2C

Excellent quick response time: 10 μS
Extremely thin thickness for best mechaniam design: 1.21 mm
High contrast: 2000: 1
Wide viewing angel: 160°
Wide range operating temperature: -40 to 70 ºC
Anti-glare polarizer
High brightness, Sunlight Readable
low power consumption
Life Time: 12000 Hrs

Mechanical Datas:

NO	ITEM	SPECIFICATION	UNIT
1	Dot Marrix	128(W) x 64(H)	dot
2	Dot Size	0.21(W) x 0.21(H)	mm
3	Dot Pitch	0.23(W) x 0.23(H)	mm
4	Active Area	29.42(W) x 14.7(H)	mm
5	Panel Size	34.50(W) x 23.0(H)	mm
6	Panel Thickness	1.40	mm
7	Module Size	34.50(W) x 23.0(H) x 1.40(T)	mm
8	Diagonal A/A Size	1.30	inch
