1.30 inch 128x64 Dots White OLED Display ZIF Connector Type


Product Description


Small molecular organic light emitting diode (OLED)
Color: White
Panel Matrix: 128*64
Driver IC: SH1106G

Interface: 6800/8080, 4-wire SPI, I2C

Connecting Type: ZIF

Excellent quick response time: 10 μS
Extremely thin thickness for best mechaniam design: 1.21 mm
High contrast: 2000: 1
Wide viewing angel: 160°
Wide range operating temperature: -40 to 70 ºC
Anti-glare polarizer
High brightness, Sunlight Readable
low power consumption
Life Time: 12000 Hrs

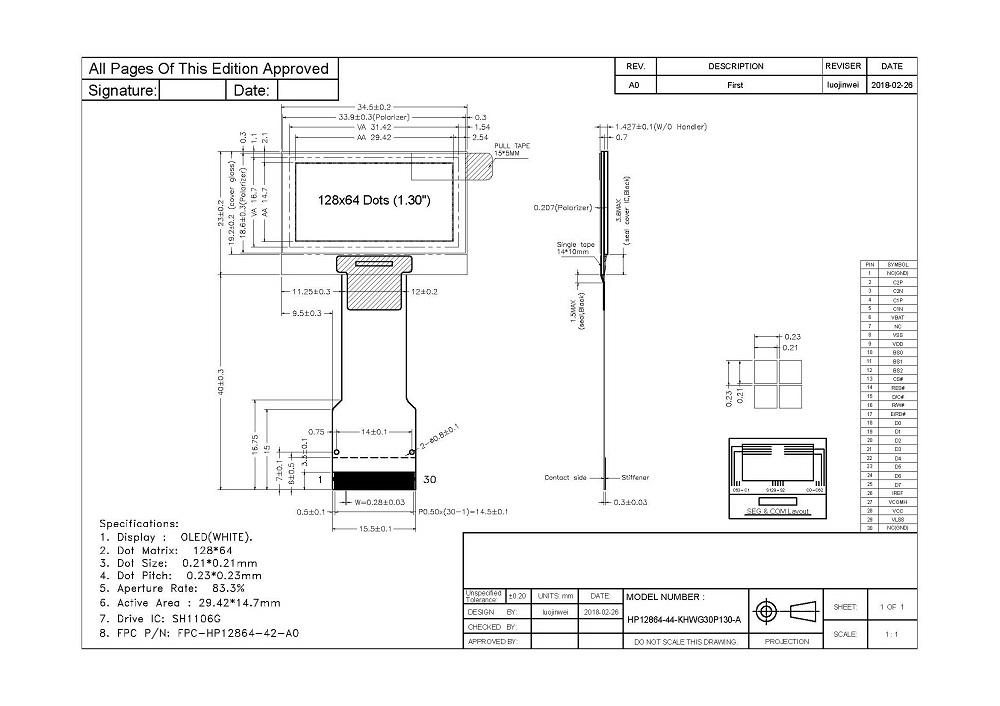

Mechanical Datas:

1 Dot Marrix 128(W) x 64(H) dot
2 Dot Size 0.21(W) x 0.21(H) mm
3 Dot Pitch 0.23(W) x 0.23(H) mm
4 Active Area 29.42(W) x 14.7(H) mm
5 Panel Size 34.50(W) x 23.0(H) mm
6 Panel Thickness 1.427 mm
7 Module Size 34.50(W) x 23.0(H) x 1.427(T) mm
8 Diagonal A/A Size 1.30 inch
