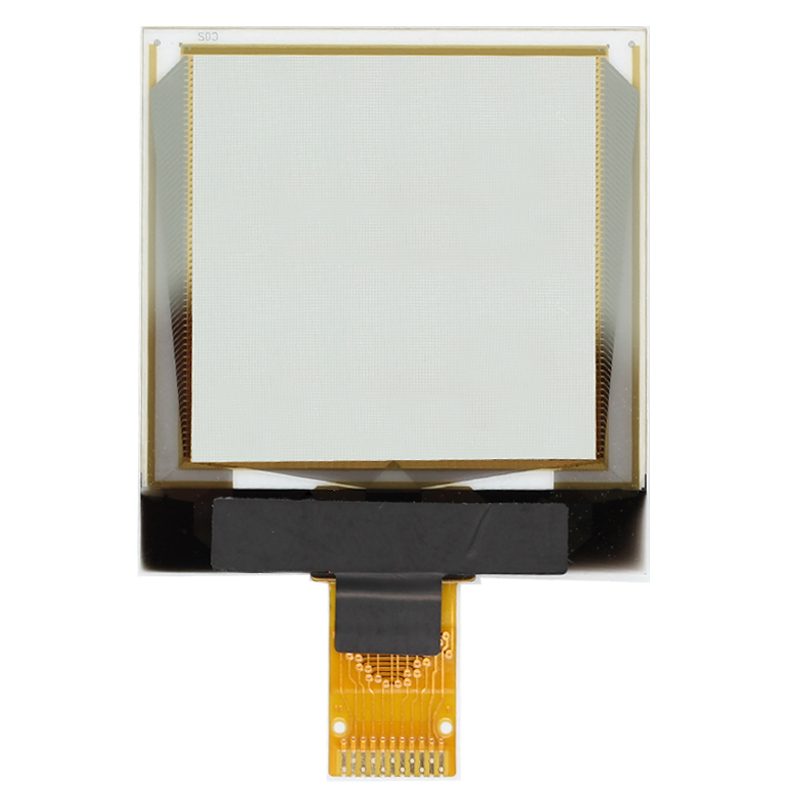

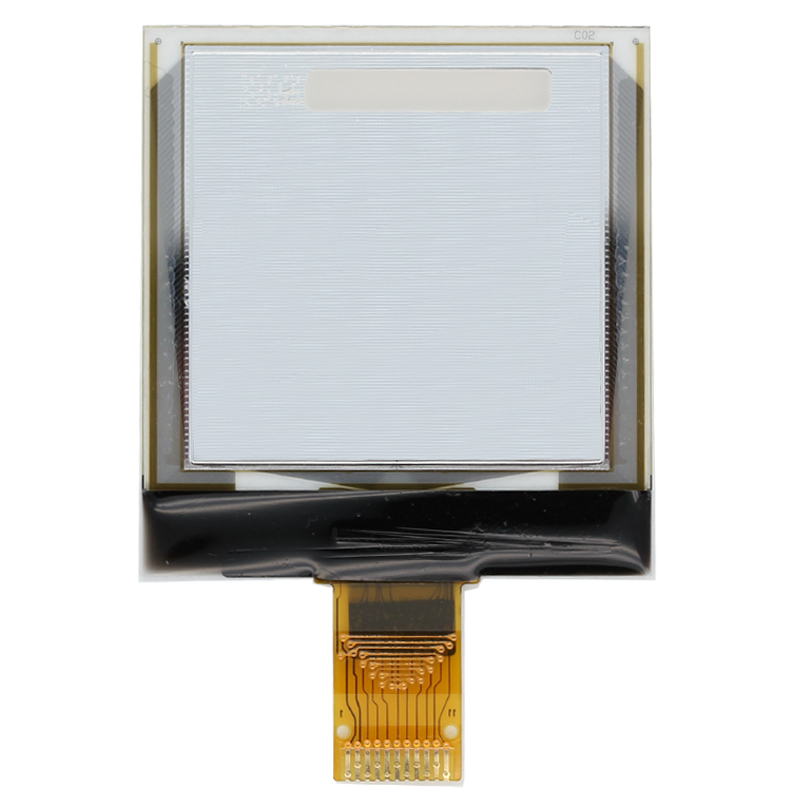

1.50 inch 128x128 Dots White OLED Display

Model:OHEM128128-01
PDF Doc: Download
Add to inquiry

Product Description

Features:

Small molecular organic light emitting diode (OLED)

Self-luminous
Color: White
Panel Matrix: 128(w)*128(h)
Driver IC: SSD1327Z

Interface: 4 wire SPI

Excellent quick response time: 10 μS
Extremely thin thickness for best mechaniam design: 0.20 mm
High contrast: 2000: 1
Wide viewing angel: 160°
Wide range operating temperature: -40 to 70 ºC
Anti-glare polarizer
High brightness, Sunlight Readable
low power consumption
Life Time: 12000 Hrs

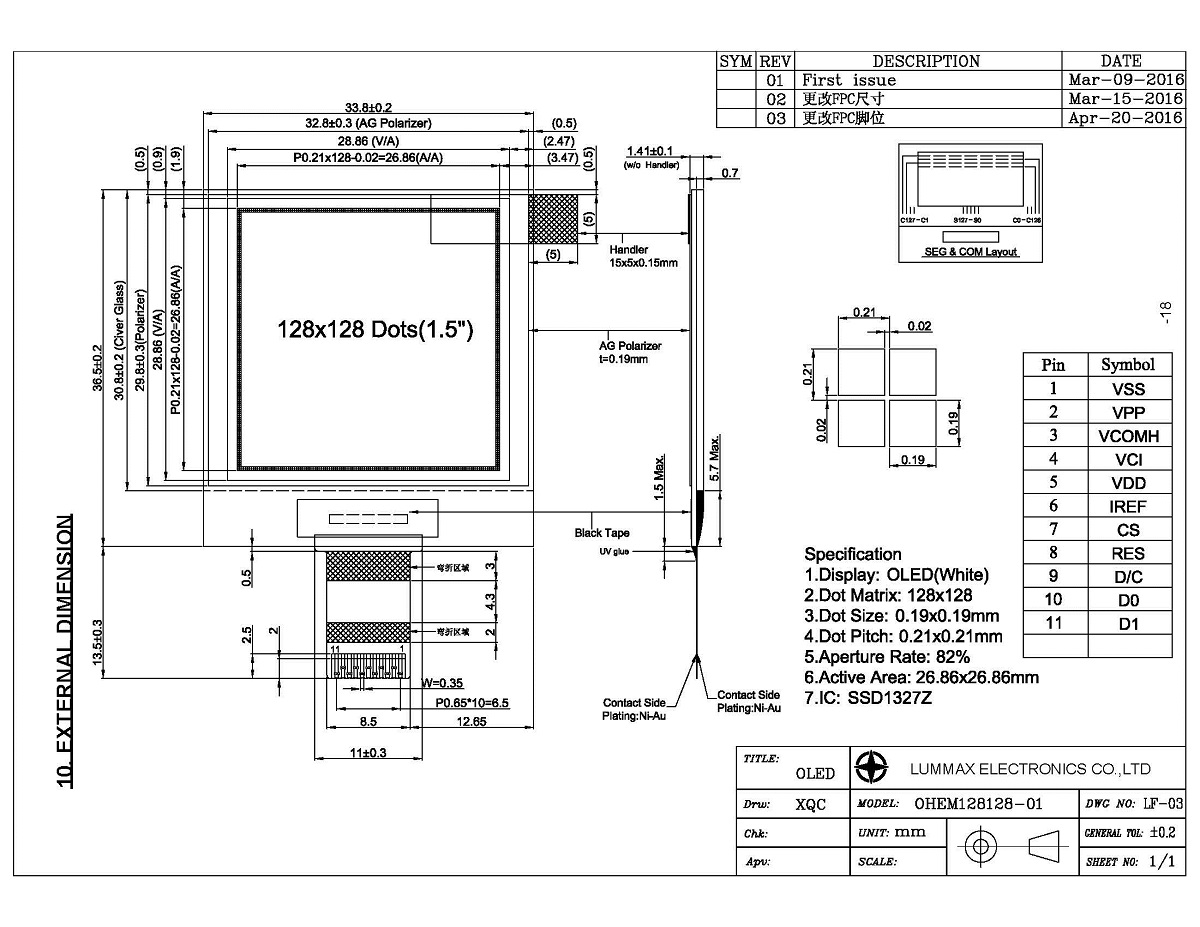

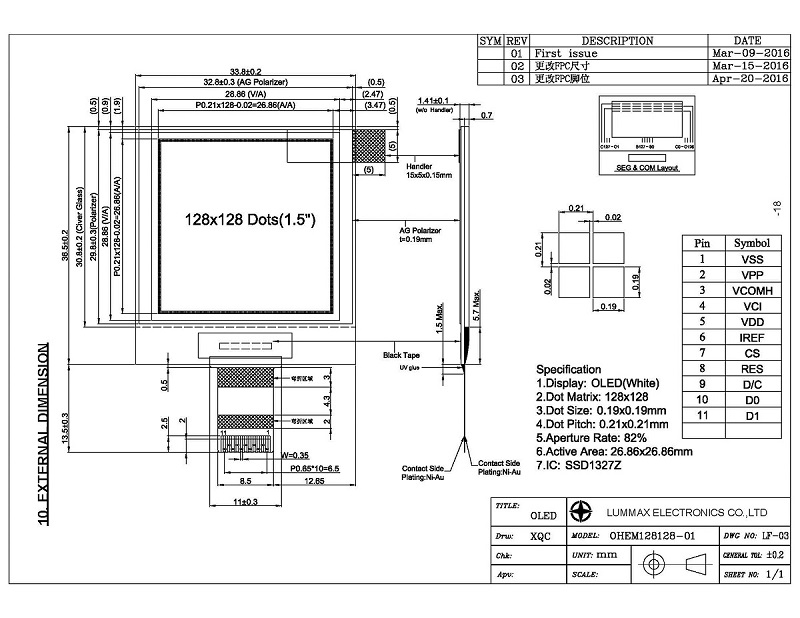

Mechanical Datas:

NO	ITEM	SPECIFICATION	UNIT
1	Dot Marrix	128(W) x 128(H)	dot
2	Dot Size	0.19(W) x 0.19(H)	mm
3	Active Area	26.86(W) x 26.86 (H)	mm
4	Panel Size	33.80(W) x 36.50(H)	mm
5	Panel Thickness	1.41	mm
6	Module Size	33.80(W) x 36.50(H) x 1.41(T)	mm
7	Diagonal A/A Size	1.50	inch
