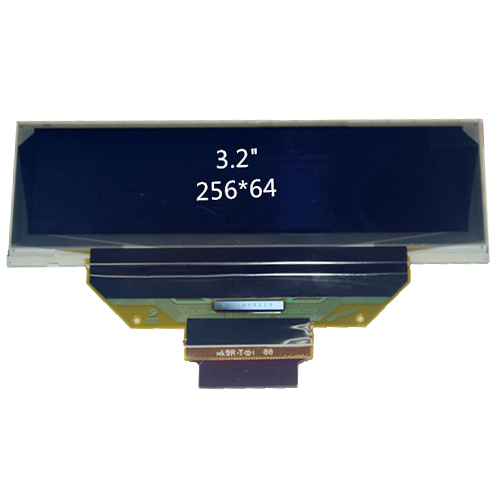

3.20 inch 256x64 Dots White OLED Display
- Model:OHEM25664-01
- PDF Doc: Download
- Add to inquiry
Product Description
Features:
Small molecular organic light emitting diode (OLED)
Self-luminous
Color: White
Panel Matrix: 256*64
Driver IC: SSD1322U1R1
Interface: 8-bit 68xx/80xx Parallel, 3/4 wire Serial Peripheral
Excellent quick response time: 10 μS
Extremely thin thickness for best mechaniam design: 2.01 mm
High contrast: 2000: 1
Wide viewing angel: 160°
Wide range operating temperature: -40 to 70 ºC
Anti-glare polarizer
High brightness, Sunlight Readable
low power consumption
Mechanical Datas:
| NO | ITEM | SPECIFICATION | UNIT |
| 1 | Dot Marrix | 256(W) x 64(H) | dot |
| 2 | Dot Size | 0.289(W) x 0.289(H) | mm |
| 3 | Dot Pitch | 0.309(W) x 0.309(H) | mm |
| 4 | Active Area | 79.084(W) x 19.756(H) | mm |
| 5 | Panel Size | 87.4(W) x 28.5(H) | mm |
| 6 | Panel Thickness | 2.01 | mm |
| 7 | Module Size | 87.4(W) x 51.3(H) x 2.01(T) | mm |
| 8 | Diagonal A/A Size | 3.20 |
inch |

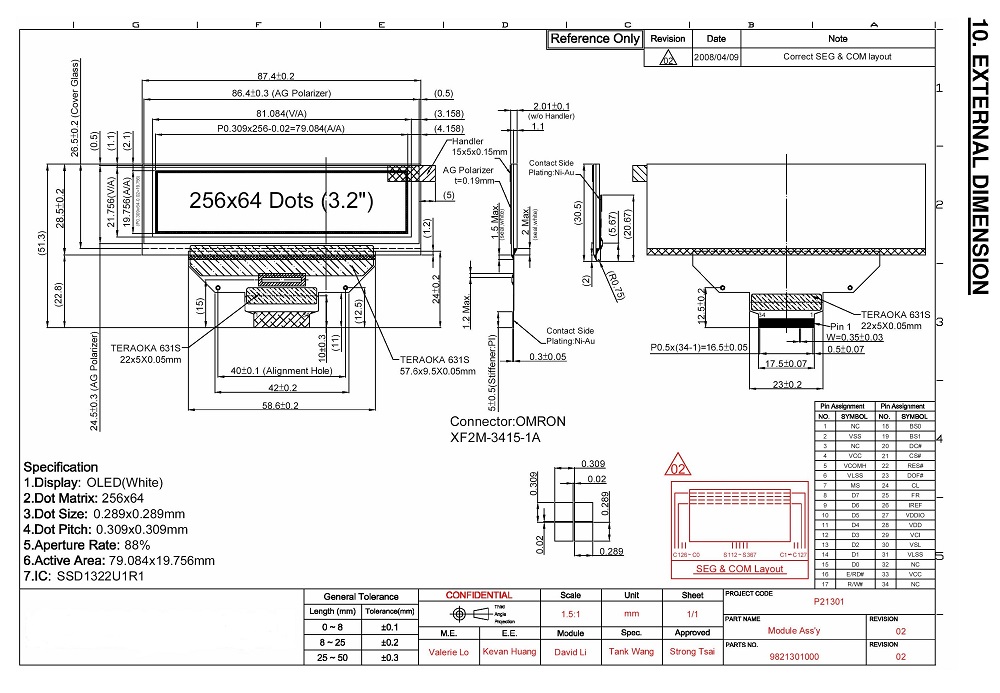

External Dimension:
