1.30 inch 240x240 IPS Round Shape TFT LCD Display



Product Description


Item:

1.30 inch IPS Round Shape TFT LCD display

Model No:

T1D3BP-025

Display Mode:

Normally White,Transmissive

Resolution:

240 x RGB x 240

Crystal:

a-Si TFT active matrix

Color Filter Array:

R.G.B. Vertical Stripe

Outline Dimensions:(mm)

35.50(W) x 38.23(H) x 1.41 (D)

Active Area(mm):

32.4(H) x 32.4(V)

Interface:

3 SPI

View Direction:

All

Touch Panel:

Optional

Working temperature:

-20~70°C

Storage Temperature:

-30~+80°C


We have other sizes of TFT LCDs from 0.96 inch to 8.0 inch for your selction. Contact us Now!

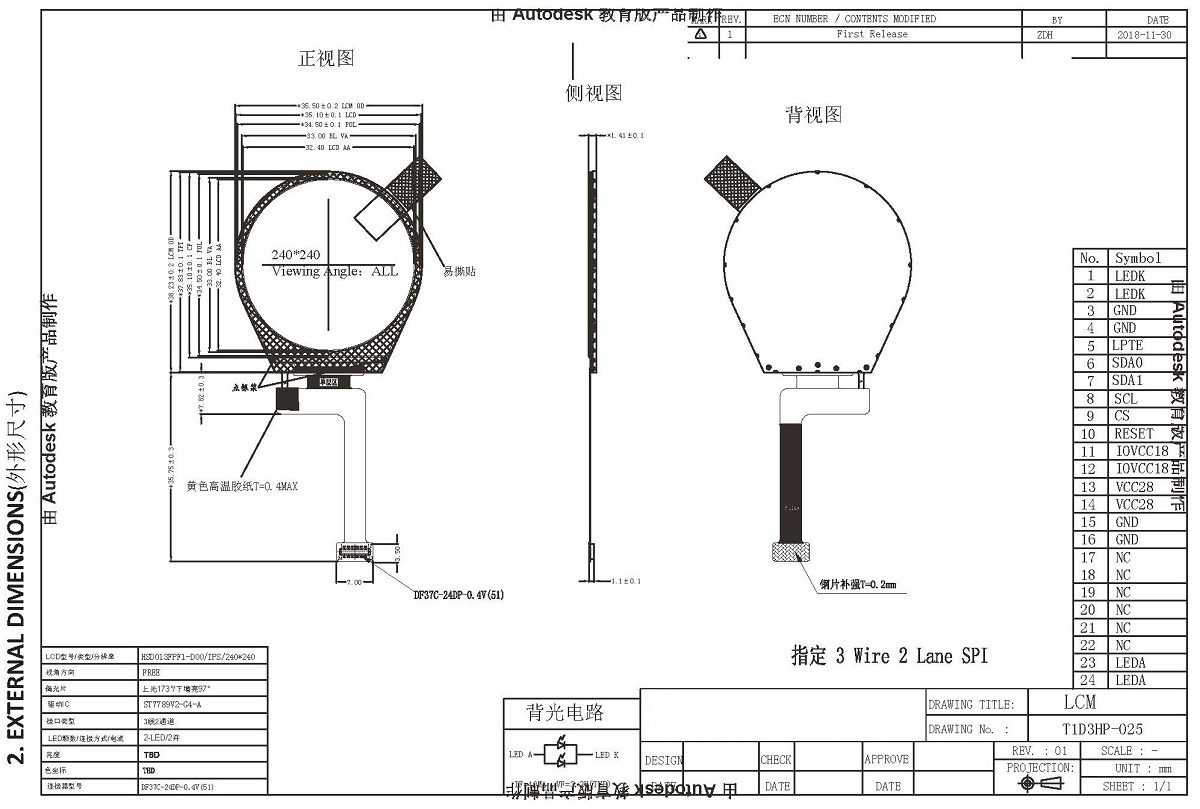

Drawing and Specs:
