Graphic LCD Module-COG
Lummax COG (chip-on-glass) LCD module offers various resolutions from 64x64 through to 240x160 pixels. COG LCDs have the advantages such as high resolution, small size, low weight, and low current consumption. In addition, the FPC of the COG LCD can also be soldered to a PCB board, and this way, change the its connector from FPC to plated hole or flex cable
| Add to inquiry |
Display Format |
Picture | Model No. | Outline Dimension (mm) |
Viewing Area (mm) |
Dot Size (mm) |
Interface | Built-in Controller |
LCD Color | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STN Grey |
STN Yellow |
STN Blue |
FSTN B&W |
||||||||||

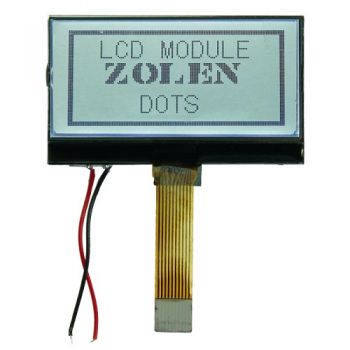

128x64 |
 |
42.0x31.6 | 38.0x24.3 | 0.257x0.33 | 4 Wire SPI | ST7567 | Y | Y | Y | Y |  |
||

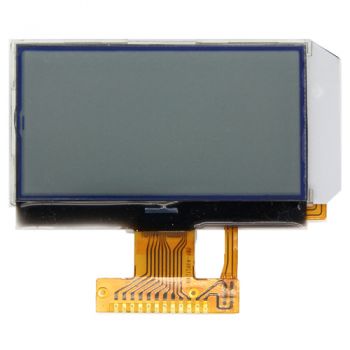

128x64 |
 |
48.50x28.15 | 39.5x20.2 | 0.28x0.28 | 4 Wire SPI | ST7567 | Y | Y | Y | Y | |
||

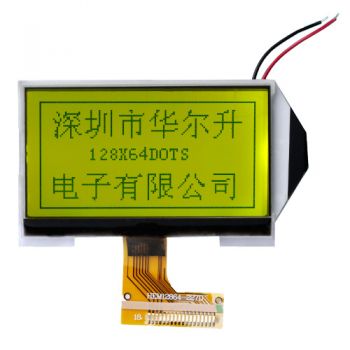

128x64 |
 |
77.4x51.0 | 70.7x38.8 | 0.48x0.48 | Parallel 8080 | ST7565P | Y | Y | Y | Y | |
||

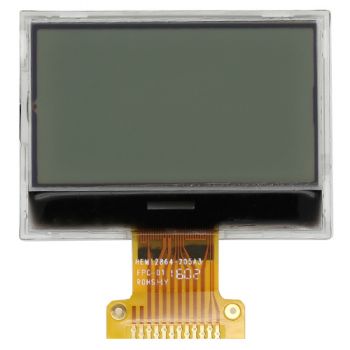

128x64 |
 |
66.3x40.8 | 53.8x28.8 | 0.35x0.35 | 4 Wire SPI | UC1701 | Y | Y | Y | Y | |
||
128x64 |
 |
46.0x37.0 | 43.0x29.2 | 0.28x0.37 | SPI, Parallel | ST7567 | Y | Y | Y | Y | |
||
128x64 |
 |
32.5x24.0 | 29.00x16.65 | 0.18x0.20 | 4 wire SPI | ST7567 | Y | Y | Y | Y | |
||
128x64 |
 |
59.0x45.4 | 54.2x34.5 | 0.34x0.38 | SPI, Parallel | ST7567 | Y | Y | Y | Y | |
||
128x64 |
 |
75.0x43.6 | 61.0x31.5 | 0.42x0.42 | 4 Wire SPI | ST7567 | Y | Y | Y | Y | |
||
128x64 |
 |
34.0x42.45 | 17.5x35.0 | 0.225x0.235 | 4 Wire SPI | ST7539 | Y | Y | Y | Y | |
||

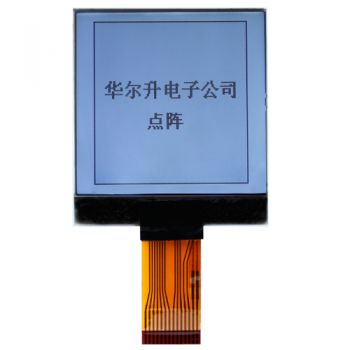

128x128 |
 |
49.0x55.0 | 46.0x44.5 | 0.275x0.295 | 4 Wire SPI | UC1617S | Y | Y | Y | Y | |
||
152x64 |
 |
37.8x22.0 | 35.8x17.0 | 0.20x0.21 | 4 Wire SPI | ST7525 | Y | Y | Y | Y | |
||
192x64 |
 |
100.0x48.0 | 84.0x32.0 | 0.39x0.39 | 4 Wire SPI | IST3020 | Y | Y | Y | Y | |
||
